Source double row angular contact bearings in Australia by matching dimensions, load direction, speed, sealing and application details.

Equipment exposed to changing radial and axial forces needs a bearing arrangement matched to the load, speed and available space. Our double row angular contact bearings give buyers a compact option for combined-load applications where shaft support and bidirectional axial capacity matter.

Why Are Double Row Angular Contact Bearings Used for Combined Loads?

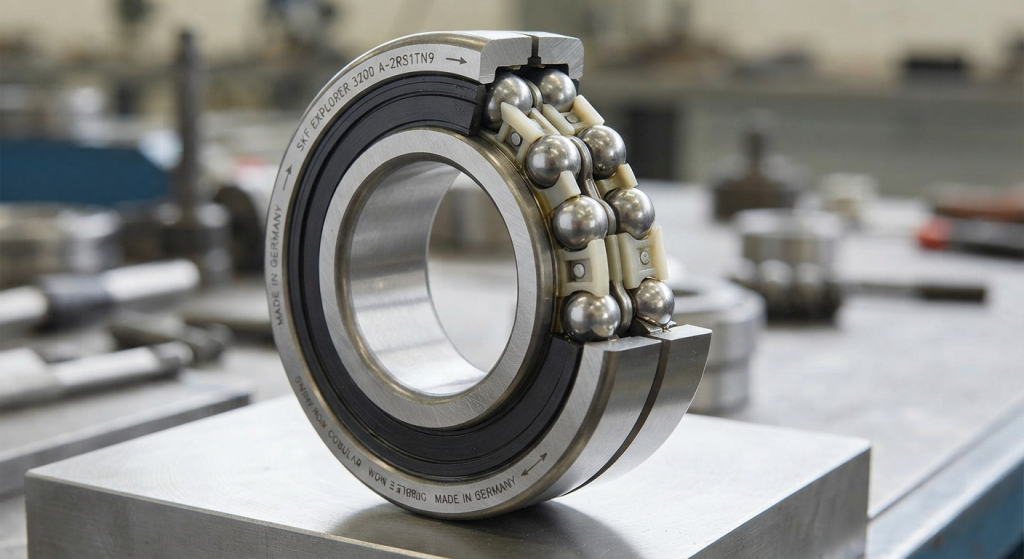

Double row angular contact bearings use two rows of balls and angled raceway contact to accommodate radial loads together with axial loads acting in both directions. That arrangement can suit machinery where a single bearing position must manage combined forces without the axial space required by two separate single-row bearings.

Our double row angular contact bearing range includes open and 2RS options in chrome steel and stainless variants across multiple sizes. The published catalogue lists 5200 and 5300 series examples with bore, outside diameter, width, load-rating and limiting-speed data for specification checks.

What Should Buyers Check Before Ordering a Double Row Bearing?

The part number alone is not enough when replacing or specifying a bearing. We recommend confirming the operating requirements and physical dimensions before an order is finalised.

• Load profile: Confirm radial and axial load direction and magnitude.
• Dimensions: Confirm bore, outside diameter and width.
• Configuration: Specify open or sealed construction.
• Operating conditions: Provide speed and surrounding environment.
• Designation: Supply the existing part number, material and preferred brand where known.

These details narrow the search and reduce the risk of ordering a bearing that fits dimensionally but does not suit the application. Our online bearing stock search can also be used to check listed part numbers, brands and quantities before an enquiry.

How Does Double Row Design Affect Bearing Selection?

A double row arrangement can provide a compact way to support combined loads, but selection still depends on the actual machine. Contact angle, internal geometry, load rating, sealing and speed limits all influence suitability.

For a useful technical reference, NSK guidance on double-row angular contact ball bearings explains that these bearings can sustain axial loads in both directions and are commonly used where compact, fixed-end bearing support is required.

We do not treat every heavy-load application as interchangeable. A conveyor, pump, gearbox or agricultural machine may place different demands on the bearing, so size and series selection should follow the equipment data rather than a generic heavy-duty label.

Matching Part Numbers, Sizes and Availability in Australia

Global Bearings sources and supplies bearings for industrial and automotive applications and maintains access to multiple bearing brands. When a replacement is difficult to identify, we can work from the part number, size, brand or application details supplied with the enquiry.

For double row angular contact bearings, the most useful starting information is the existing designation and measured dimensions. Buyers unfamiliar with the load terms can review how ball bearings support radial and axial loads before checking our wider bearing range and requesting availability.

Request Double Row Angular Contact Bearings in Australia

The right double row angular contact bearings should match the machine rather than simply meet a broad “heavy load” description.

Send us the bearing number, dimensions, preferred brand, quantity and application details through our request a bearing quote form for a practical supply enquiry and current availability.
